 High precision, long service life. |
| |
| Low noise, low friction resistance, and vibration-free linear motion. |
|
| Fully enclosed cross roller cage design (Plastic design) |
| |
| High density arrangement of rollers, high load capacity |
| |
By reducing the spacing between the rollers, more rollers can be accommodated within the same roller cage length
for the cross rollers, thereby increasing the load capacity of the limited stroke limited stroke. |
| |
 |
|
 |
|
| |
( high quantity arrangements ) |
|
|
|
| |

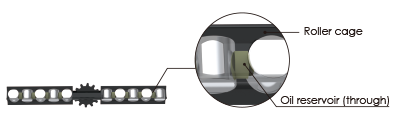

| Integrated through-type oil reservoir design |
| |
The roller cage design not only effectively stabilizes the rollers but also allows for grease storage in the oil reservoirs between the rollers during operation. This ensures even lubrication of the rollers, demonstrating excellent lubrication capability and extending the relubrication interval. |
|
 |
|
| |

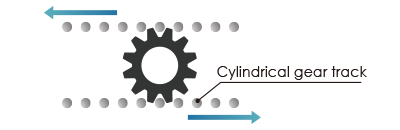

| Patent for Anti-Creep design |
| |
The cpc patented anti-creep design prevents the rollers
from shifting or sliding during operation by fitting a toothed
wheel on the roller cage with a cylindrical tooth track. |
|
 |
|
| |

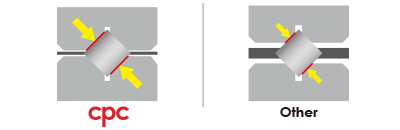

| High contact length |
| |
The contact length between the rolling elements and the
rail raceway is longer than that of competitors, which
allows cpc to have a higher rated load capacity under
the same size. |
|
 |
|
| |
| |
| |
| |
| |
