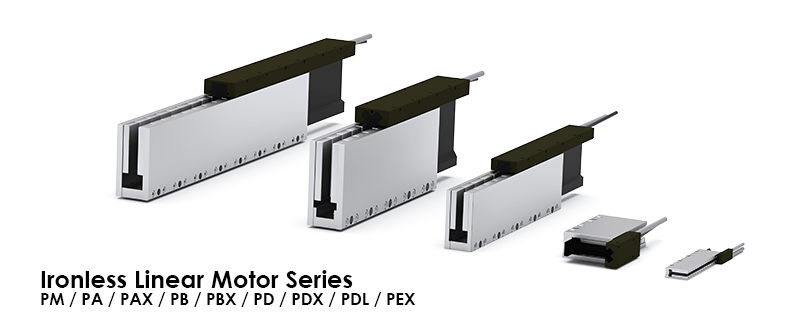

Ironless Linear Motor Series

Type	Description
catalog	Linear Motor	Download
manual	Linear Motor Installation Guide__Ver 1.1	Download
software	Motor Sizing tool Setup	Download

cpc Linear Motor with Overlapped Windings

Superior electrical insulation and heat dissipation capability

Compact package with high force output

Y-beam design for excellent structural integrity and strength

High speed and high precision

High-rigidity direct drive coupled with closed-loop control system enables precision control to attain high speed operations with excellent precision performances. In addition, the ironless linear motors are stable and smooth when operated at low speeds.

Simple mechanical structure

Multiple forcers, each operated individually, can be installed on a single magnetic way to form a simple overall structure that can be readily assembled.

For high cleanness requirement applications

The linear motor series offer solutions to dirt buildup and lubricant spray mist problems associated with conventional transmission structures containing gear gaps and ball screws. Hence this series is ideal for applications in dust-free environments.
